XCL205 - Inductor Built-in Step-Down micro DC/DC Converters

Product Overview

Torex Semiconductor

Datasheet Details

Part number	XCL205
Manufacturer	Torex Semiconductor
File Size	2.26 MB
Description	Inductor Built-in Step-Down micro DC/DC Converters
Datasheet	XCL205 Datasheet

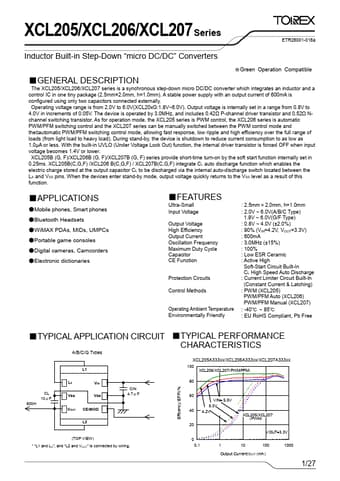

Additional preview pages of the XCL205 datasheet.

Product details

Description

The XCL205/XCL206/XCL207 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm).

Features

ll Input Voltage Output Voltage High Efficiency Output Current Oscillation Frequency Maximum Duty Cycle Capacitor CE Function Protection Circuits Control Methods Operating Ambient Temperature Environmentally Friendly : 2.5mm×2.0mm, h=1.0mm : 2.0V ~ 6.0V(A/B/C Type) 1.8V ~ 6.0V(G/F Type) : 0.8V ~ 4.0V (±2.0%) : 90% (VIN=4.2V, VOUT=3.3V) : 600mA : 3.0MHz (±15%) : 100% : Low ESR Ceramic : Active High Soft-Start Circuit Built-In CL High Speed Auto Discharge : Current Limiter Circuit Built-In (Const.
