XCL226, XCL225 - 0.5A Inductor Built-in Step-down micro DC/DC Converter

XCL226 Description

XCL225/XCL226 Series 0.5A Inductor Built-in Step-down “micro DC/DC” Converter ETR28014-004 *GENERAL .
The XCL225/XCL226 series are 18V operation synchronous step-down DC/DC converter ICs with a built-in high-side / low-side driver transistor.

XCL226 Features

* Input Voltage Range FB Voltage Oscillation Frequency Output Current Control Methods Soft-start Time Protection Circuits Package Environmentally Friendly : 3 ~ 18V（Absolute Max 20V） : 0.75V±1.5% : 1.2MHz : 500mA : PWM control PWM/PFM Automatic Efficiency 85%@12V→5V, 1mA : Adjustable by RC : Over Cur

XCL226 Applications

* Hot water supply system
* Recorders, Camcorders
* Refrigerators, Air-conditioners
* Low Power Systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: XCL226, XCL225. Please refer to the document for exact specifications by model.

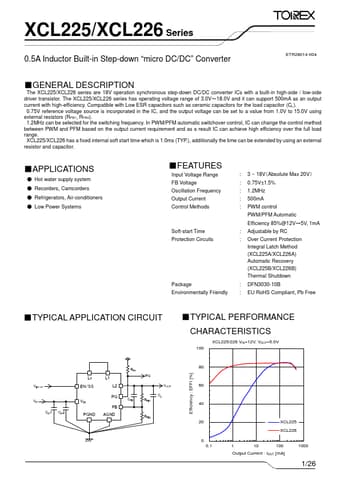

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XCL226, XCL225
Manufacturer
Torex
File Size
626.36 KB
Datasheet
XCL225-Torex.pdf
Description
0.5A Inductor Built-in Step-down micro DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: XCL226, XCL225.
Please refer to the document for exact specifications by model.
