XCL206, XCL205 Inductor Built-in Step-Down micro DC/DC Converters

XCL206 Description

XCL205/XCL206/XCL207 Series ETR28001-018a Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible *GENERAL .
The XCL205/XCL206/XCL207 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.

XCL206 Features

* Ultra-Small Input Voltage Output Voltage High Efficiency Output Current Oscillation Frequency Maximum Duty Cycle Capacitor CE Function Protection Circuits Control Methods Operating Ambient Temperature Environmentally Friendly : 2.5mm×2.0mm, h=1.0mm : 2.0V ~ 6.0V(A/B/C Type) 1.8V ~ 6.0V(G/F Type) :

XCL206 Applications

* Mobile phones, Smart phones
* Bluetooth Headsets
* WiMAX PDAs, MIDs, UMPCs
* Portable game consoles
* Digital cameras, Camcorders
* Electronic dictionaries

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: XCL206, XCL205. Please refer to the document for exact specifications by model.

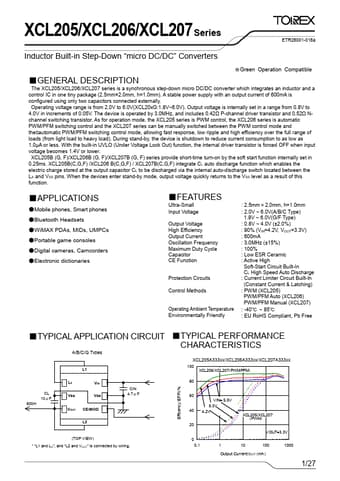

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XCL206, XCL205
Manufacturer
Torex Semiconductor
File Size
2.26 MB
Datasheet
XCL205_TorexSemiconductor.pdf
Description
Inductor Built-in Step-Down micro DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: XCL206, XCL205.
Please refer to the document for exact specifications by model.
