XCL221

0.5A Inductor Built-in Step-Down Converters

Torex Semiconductor

XCL221 Features

* Input Voltage : 2.5V ~ 5.5V Output Voltage : 0.8V ~ 3.6V (±2.0%) Oscillation Frequency : 1.2MHz Output Current : 500mA Efficiency Control Methods : 93% (VIN=5.0V, VOUT=3.3V/200mA) : HiSAT-COT 100% Duty Cycle PWM (XCL221) PWM/PFM (XCL222) Circuit Protection : Thermal Shut Down Current

XCL221 General Description

The XCL221/XCL222 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. A wid.

XCL221 Datasheet (1.10 MB)

XCL221 Datasheet Preview — Preview of XCL221 PDF

Datasheet Details

Part number:

XCL221

Manufacturer:

Torex Semiconductor

File Size:

1.10 MB

Description:

0.5a inductor built-in step-down converters.

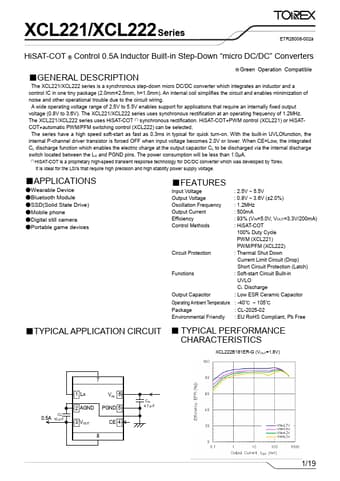

XCL221/XCL222 Series ETR28008-002a HiSAT-COT ® Control 0.5A Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible
*G.
