2SA1735 Datasheet - Toshiba Semiconductor

2SA1735 Silicon PNP Epitaxial Type Transistor

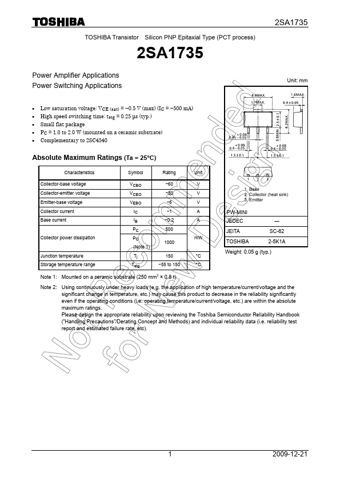

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1735 Power Amplifier Applications Power Switching Applications 2SA1735 Unit: mm Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 500 mA) High speed switching time: tstg = 0.25 μs (typ.) Small flat package PC = 1.0 to 2.0 W (mounted on a ceramic substrate) Complementary to 2SC4540 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Col.

2SA1735_ToshibaSemiconductor.pdf

Preview of 2SA1735 PDF
2SA1735 Datasheet Preview Page 2 2SA1735 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1735

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

173.16 KB

Description:

Silicon pnp epitaxial type transistor.
