2SA1736 Datasheet - Toshiba Semiconductor

2SA1736 PNP Transistor

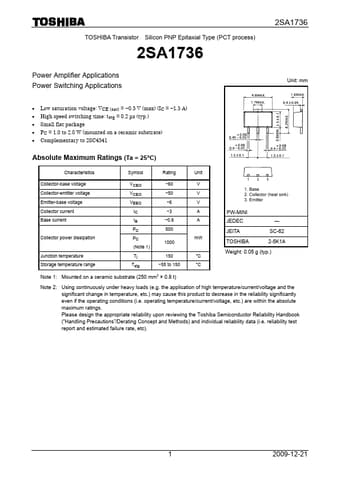

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1736 Power Amplifier Applications Power Switching Applications 2SA1736 Unit: mm Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1.5 A) High speed switching time: tstg = 0.2 μs (typ.) Small flat package PC = 1.0 to 2.0 W (mounted on a ceramic substrate) Complementary to 2SC4541 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Colle.

2SA1736_ToshibaSemiconductor.pdf

Preview of 2SA1736 PDF
2SA1736 Datasheet Preview Page 2 2SA1736 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1736

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

192.06 KB

Description:

Pnp transistor.
