2SC1959 Datasheet - Toshiba Semiconductor

2SC1959 PNP Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SC1959 Audio Frequency Low Power Amplifier Applications Driver Stage Amplifier Applications Switching Applications 2SC1959 Unit: mm Excellent hFE linearity: hFE (2) = 25 (min): VCE = 6 V, IC = 400 mA 1 watt amplifier applications. Complementary to 2SA562TM. Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector powe.

2SC1959_ToshibaSemiconductor.pdf

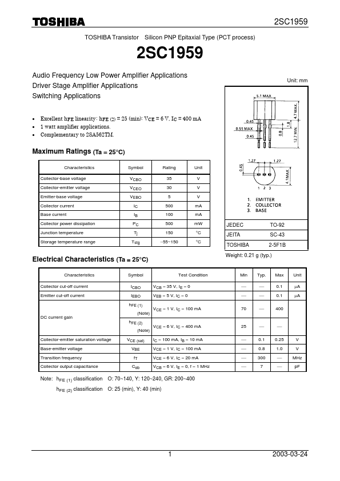

Preview of 2SC1959 PDF
2SC1959 Datasheet Preview Page 2 2SC1959 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1959

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

81.35 KB

Description:

Pnp transistor.
