2SD1223 NPN TRANSISTOR

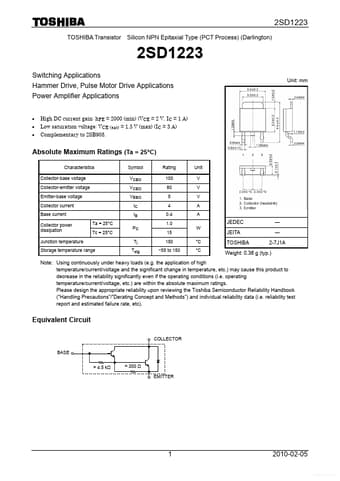

2SD1223 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) (Darlington) 2SD1223 Switching Applications Hammer Drive, Pulse Motor Drive Applications Power Amplifier Applications High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A) Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 3 A) Complementary to 2SB908. Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Colle.
