2SK2550 Datasheet - Toshiba Semiconductor

2SK2550 Silicon N Channel MOS Type Field Effect Transistor

2SK2550 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2550 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 24 mΩ (typ.) z High forward transfer admittance : |Yfs| = 27 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 50 V) z Enhancement mode : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit .

2SK2550_ToshibaSemiconductor.pdf

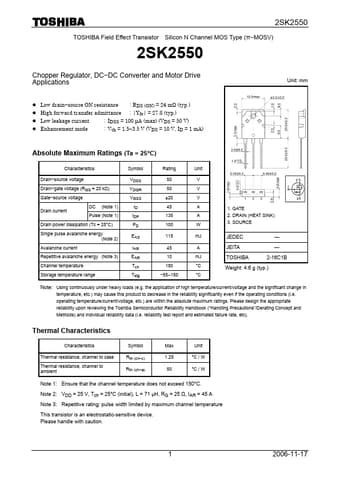

Preview of 2SK2550 PDF
2SK2550 Datasheet Preview Page 2 2SK2550 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2550

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

153.62 KB

Description:

Silicon n channel mos type field effect transistor.
