2SK2551 Datasheet - Toshiba Semiconductor

2SK2551 Silicon N Channel MOS Type Field Effect Transistor

2SK2551 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2551 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 7.2 mΩ (typ.) z High forward transfer admittance : |Yfs| = 50 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 50 V) z Enhancement mode : Vth = 1.5 to 3.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating .

2SK2551 Features

* s that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability for damages or losses occurring as a result of noncompliance with applicable laws and regulations. 6 2009-09-29

2SK2551_ToshibaSemiconductor.pdf

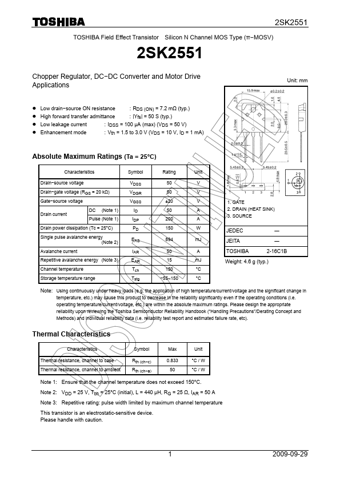

Preview of 2SK2551 PDF
2SK2551 Datasheet Preview Page 2 2SK2551 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2551

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

387.75 KB

Description:

Silicon n channel mos type field effect transistor.
