2SK2553S - Silicon N Channel MOS FET

Product Overview

Hitachi Semiconductor

Part number	2SK2553S
Manufacturer	Hitachi Semiconductor
File Size	41.18 KB
Description	Silicon N Channel MOS FET
Datasheet	2SK2553S Datasheet

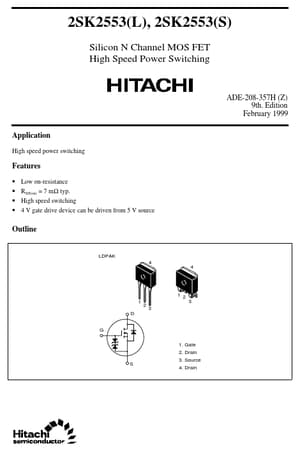

Additional preview pages of the 2SK2553S datasheet.

Low on-resistance R DS(on) = 7 mΩ typ. High speed switching 4 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 1 2 1 D G 2 3 3 S 1. Gate 2. Drain 3. Source 4. Drain 2SK2553(L), 2SK2553(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage.
