2SK3440 Datasheet - Toshiba Semiconductor

2SK3440 N-Channel MOSFET

2SK3440 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSII) 2SK3440 Switching Regulator, DC-DC Converter Applications Motor Drive Applications Low drain-source ON resistance: RDS (ON) = 6.5 mΩ (typ.) High forward transfer admittance: |Yfs| = 30 S (typ.) Low leakage current: IDSS = 100 µA (VDS = 60 V) Enhancement-mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Unit: mm Maximum Ratings (Tc = 25°C) Characteristics Drain-source voltage Drai.

2SK3440_ToshibaSemiconductor.pdf

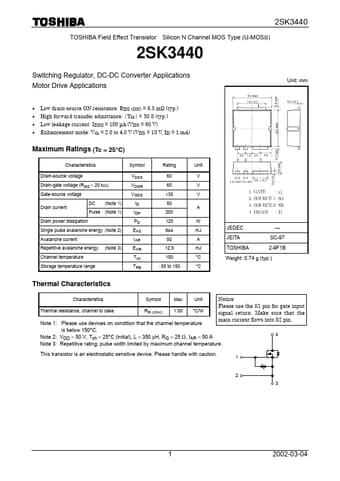

Preview of 2SK3440 PDF
2SK3440 Datasheet Preview Page 2 2SK3440 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3440

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

320.52 KB

Description:

N-channel mosfet.
