2SK3442 - N-Channel MOSFET

2SK3442 Description

2SK3442 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSII) 2SK3442 Switching Regulator, DC-DC Converter and Motor Drive Application.

2SK3442 Features

* rom its use. No license is granted by implication or otherwi

2SK3442 Applications

* Low drain-source ON resistance: RDS (ON) = 15 mΩ (typ. ) High forward transfer admittance: ⎪Yfs⎪ = 28 S (typ. ) Low leakage current: IDSS = 100 μA (VDS = 100 V) Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Ratings (Ta = 25

📥 Download Datasheet

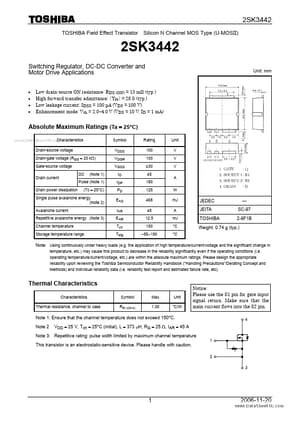

Preview of 2SK3442 PDF
datasheet Preview Page 2 datasheet Preview Page 3
