2SK3762 Datasheet - Toshiba Semiconductor

2SK3762 N-Channel MOSFET

www.DataSheet4U.com 2SK3762 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type ( -MOS‡W ) 2SK3762 unit F‚ ‚ Switching Regulator Applications 3.84 }0.2 3.84 } 0 .2 10.5 10.5 max max 4.7max 4.7 max 1.3 6.6 max 6.6 max. Low drain-source ON resistance: R DS (ON) = 5.6ƒ¶ (typ.) High forward transfer admittance: |Yfs| = 2.0 S (typ.) Low leakage current: IDSS = 100 ƒÊ A (V DS = 720 V) Enhancement-mode: V th.

2SK3762_ToshibaSemiconductor.pdf

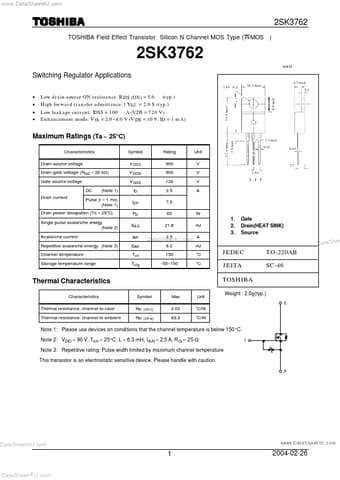

Preview of 2SK3762 PDF
2SK3762 Datasheet Preview Page 2 2SK3762 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3762

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

270.21 KB

Description:

N-channel mosfet.
