2SK3766 - Silicon N-Channel MOS Type FET

2SK3766 Description

2SK3766 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (π-MOSVI) www.DataSheet4U.com 2SK3766 Unit: mm Switching Regulator Applications <.

2SK3766 Applications

* Low drain-source ON resistance: RDS (ON) = 1.9 Ω (typ. ) High forward transfer admittance: |Yfs| = 0.65 S (typ. ) Low leakage current: IDSS = 100 μA (max) (VDS = 450 V) Enhancement model: Vth = 3.5~4.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25

📥 Download Datasheet

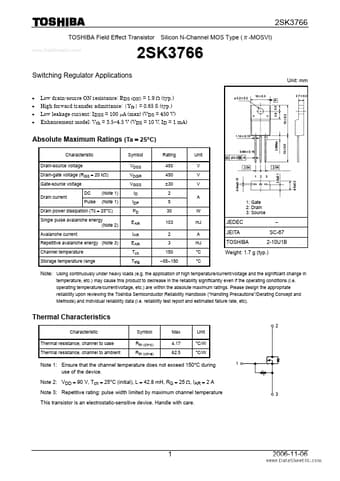

Preview of 2SK3766 PDF
datasheet Preview Page 2 datasheet Preview Page 3
