C3233 - 2SC3233

C3233 Description

2SC3233 TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC3233 Switching Regulator and High Voltage Switching Applications High Speed DC-DC Conv.

C3233 Applications

* High Speed DC-DC Converter Applications
* t
* Excellent switching times: tr = 1.0 µs (max) f = 1.0 µs (max), (IC = 0.8 A) Unit: mm High collector breakdown voltage: VCEO = 400 V Maximum Ratings (Ta = 25°C) Characteristics S Collector-base voltage Collector-emitter voltage Emitter-base vol

📥 Download Datasheet

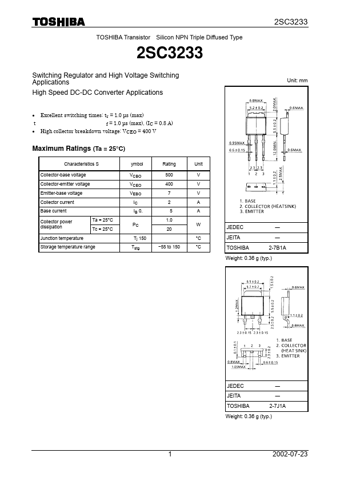

Preview of C3233 PDF
datasheet Preview Page 2 datasheet Preview Page 3
