C3279 - 2SC3279

C3279 Description

2SC3279 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC3279 Strobe Flash Applications Medium Power Amplifier Applications * High .

C3279 Applications

* Medium Power Amplifier Applications
* High DC current gain and excellent hFE linearity : hFE (1) = 140~600 (VCE = 1 V, IC = 0.5 A) : hFE (2) = 70 (min), 200 (typ. ) (VCE = 1 V, IC = 2 A)
* Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 2 A, IB = 50 mA) Unit: mm Maximum Ratings (Ta = 2

📥 Download Datasheet

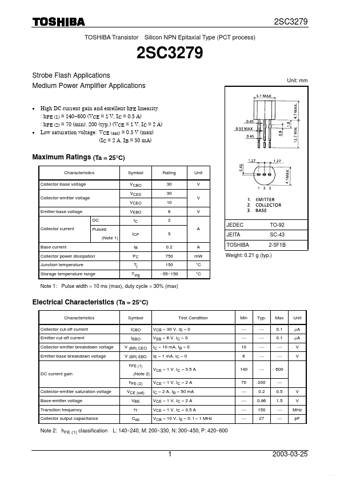

Preview of C3279 PDF
datasheet Preview Page 2 datasheet Preview Page 3
