CMS06 Datasheet - Toshiba Semiconductor

CMS06 Schottky Barrier Rectifier

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CMS06 Switching Mode Power Supply Applications Portable Equipment Battery Applications CMS06 Unit: mm Forward voltage: VFM = 0.37 V (max) Average forward current: IF (AV) = 2.0 A Repetitive peak reverse voltage: VRRM = 30 V Suitable for compact assembly due to small surface-mount package “M FLATTM” (Toshiba package name) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating.

CMS06 Datasheet (156.34 KB)

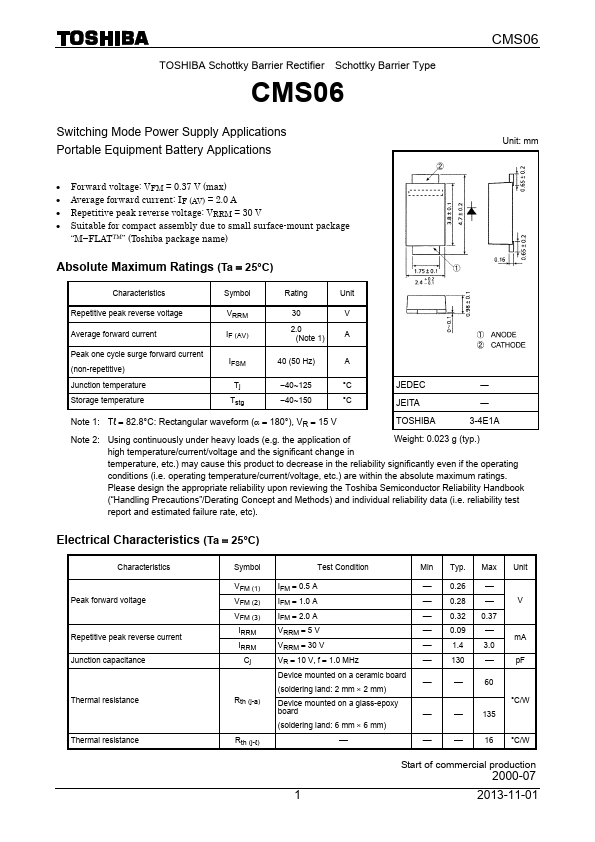

Preview of CMS06 PDF

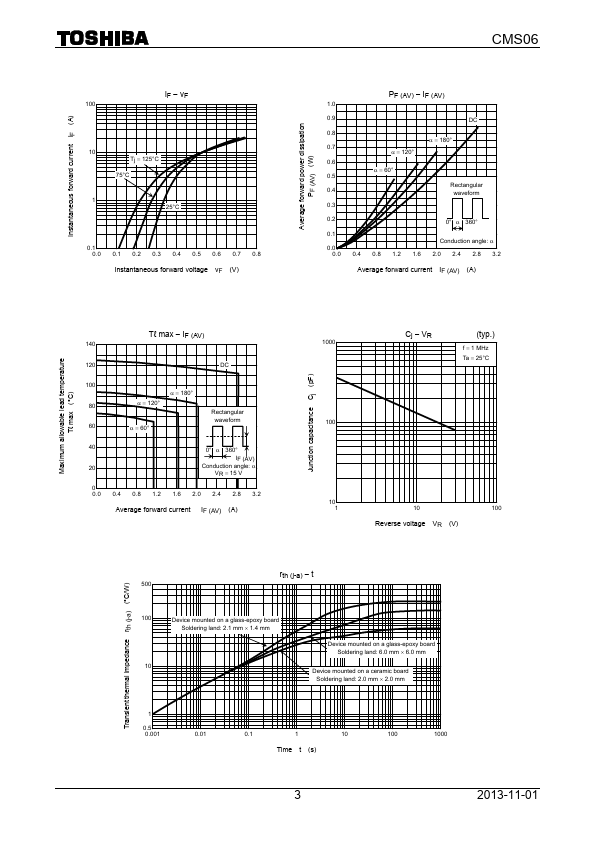

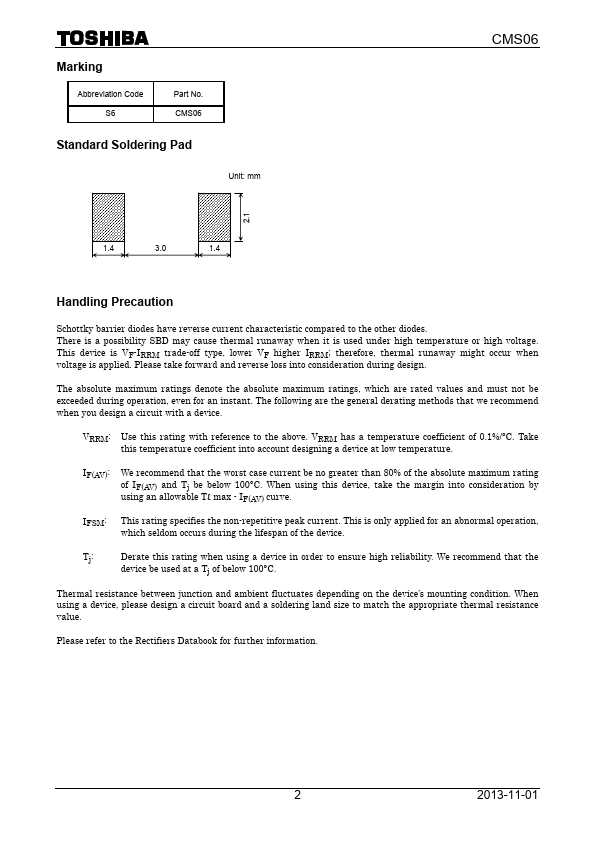

CMS06 Datasheet Preview Page 2 CMS06 Datasheet Preview Page 3

Datasheet Details

Part number:

CMS06

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

156.34 KB

Description:

Schottky barrier rectifier.
