K4017 - Silicon N-Channel MOS Type FET

K4017 Description

2SK4017 www.DataSheet4U.com TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (U-MOS III) 2SK4017 Chopper Regulator, DC-DC Converter and Mot.

K4017 Applications

* z 4-V gate drive z Low drain
* source ON-resistance: RDS (ON) = 0.07 Ω (typ. ) z High forward transfer admittance: |Yfs| = 6.0 S (typ. ) z Low leakage current: IDSS = 100 μA (max) (VDS = 60 V) z Enhancement mode: Vth = 1.3 to 2.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C)

📥 Download Datasheet

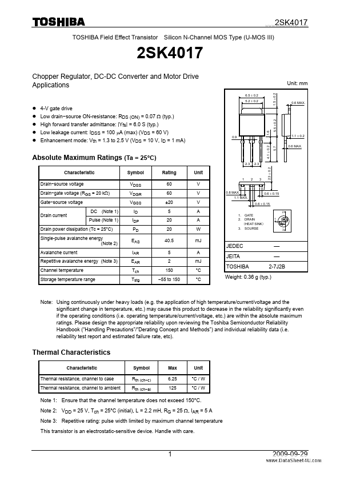

Preview of K4017 PDF
datasheet Preview Page 2 datasheet Preview Page 3
