RN1203 Silicon NPN Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

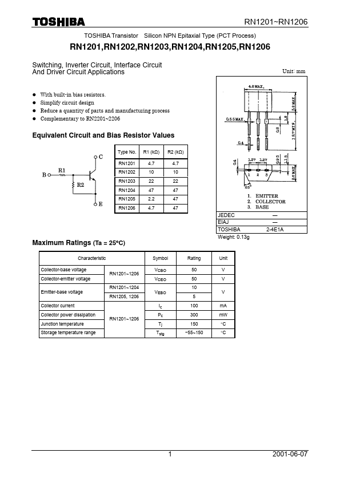

RN1201~RN1206 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1201,RN1202,RN1203,RN1204,RN1205,RN1206 Switching, Inverter Circuit, Inte.

📥 Download Datasheet

Preview of RN1203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* l With built-in bias resistors. l Simplify circuit design l Reduce a quantity of parts and manufacturing process l Complementary to RN2201~2206 Unit: mm Equivalent Circuit and Bias Resistor Values Type No. RN1201 RN1202 RN1203 RN1204 RN1205 RN1206 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 4
