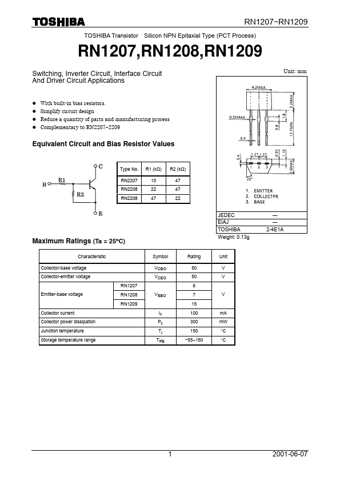

RN1207~RN1209 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1207,RN1208,RN1209 Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications l With built-in bias resistors. l Simplify circuit design l Reduce a quantity of parts and manufacturing process l Complementary to RN2207~2209 Unit: mm Equivalent Circuit and Bias Resistor Values Type No. RN2207 RN2208 RN2208 R1 (kΩ) 10 22 47 R2 (kΩ) 47 47 22 Maximum Ratings (Ta = 25°C) Characteristic Collector-base v.
