S-AV35 FM RF POWER AMPLIFIER MODULE

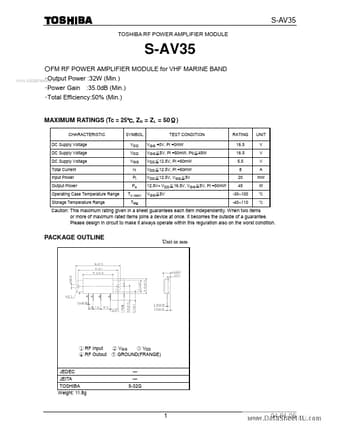

S-AV35 TOSHIBA RF POWER AMPLIFIER MODULE S-AV35 ○FM RF POWER AMPLIFIER MODULE for VHF MARINE BAND ･Output Power :32W (Min.) www.datasheet4u.com ･Power Gain :35.0dB (Min.) ･Total Efficiency:50% (Min.) MAXIMUM RATINGS (Tc = 25℃, ZG = ZL = 50Ω) CHARACTERISTIC DC Supply Voltage DC Supply Voltage DC Supply Voltage Total Current Input Power Output Power Operating Case Temperature Range Storage Temperature Range SYMBOL VDD VDD VGG IT Pi Po Tc (opr) Tstg TEST CONDITION VGG =0V, Pi =0mW VGG≦5V, Pi =50m.

S-AV35_ToshibaSemiconductor.pdf

S-AV35 Datasheet Preview — Preview of S-AV35 PDF

Datasheet Details

Part number:

S-AV35

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

198.42 KB

Description:

Fm rf power amplifier module.
