S-AV34 Datasheet - Toshiba Semiconductor

S-AV34 RF POWER AMPLIFIER MODULE RF POWER AMPLIFIER MODULE

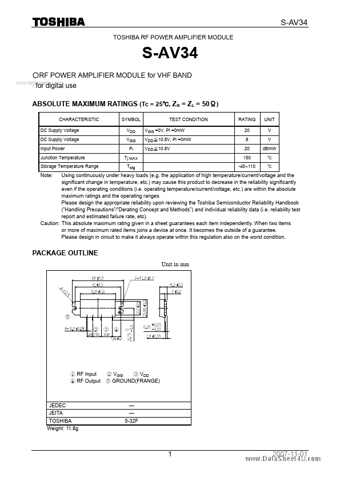

S-AV34 TOSHIBA RF POWER AMPLIFIER MODULE S-AV34 www.datasheet4u.com ○RF POWER AMPLIFIER MODULE for VHF BAND for digital use ABSOLUTE MAXIMUM RATINGS (Tc = 25℃, ZG = ZL = 50Ω) CHARACTERISTIC DC Supply Voltage DC Supply Voltage Input Power Junction Temperature Storage Temperature Range SYMBOL VDD VGG Pi Tj MAX Tstg TEST CONDITION VGG =0V, Pi =0mW VDD≦10.8V, Pi =0mW VDD≦10.8V RATING 20 8 20 150 -40~110 UNIT V V dBmW ℃ ℃ Using continuously under heavy loads (e.g. the application of high temp.

S-AV34_ToshibaSemiconductor.pdf

S-AV34 Datasheet Preview — Preview of S-AV34 PDF

Datasheet Details

Part number:

S-AV34

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

183.14 KB

Description:

Rf power amplifier module rf power amplifier module.
