SM12GZ47A - (SM12xxZ47x) AC POWER CONTROL APPLICATIONS

This page provides the datasheet information for the SM12GZ47A, a member of the SM12GZ47 (SM12xxZ47x) AC POWER CONTROL APPLICATIONS family.

📥 Download Datasheet

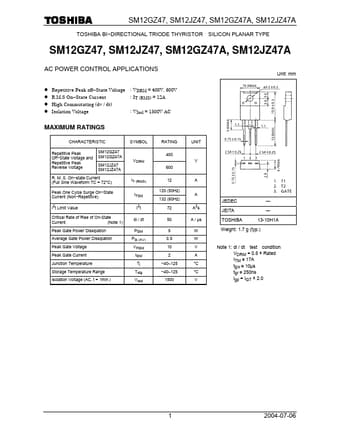

Datasheet preview – SM12GZ47A

📁 Similar Datasheet

  • SM12G48 - BI-DIRECTIONAL TRIODE THYRISTOR (Toshiba)
  • SM12G48A - BI-DIRECTIONAL TRIODE THYRISTOR (Toshiba)
  • SM12 - Low Capacitance Dual Line ESD Protection Diode Array (Union Semiconductor)
  • SM12 - DUAL COMMON ANODE TVS DIODE (Diodes)
  • SM12 - TVS Diode Arrays (Littelfuse)
  • SM12 - Bidirectional/Unidirectional TVS array (Microsemi)
  • SM12 - TVS DIODE ARRAY (GME)
  • SM12 - TVS (MCC)
  • SM12 - TVS Diode Array (Semtech)
  • SM12 - TVS Diode Array (Leiditech)
Other Datasheets by Toshiba Semiconductor
  • SM12GZ47 - (SM12xxZ47x) AC POWER CONTROL APPLICATIONS
  • SM12G45 - TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE
  • SM12G45A - TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE
  • SM12J45 - TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE
  • SM12J45A - TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE
  • SM12JZ47 - AC POWER CONTROL APPLICATIONS
  • SM12JZ47 - (SM12xxZ47x) AC POWER CONTROL APPLICATIONS
  • SM12JZ47A - (SM12xxZ47x) AC POWER CONTROL APPLICATIONS

Full PDF Text Transcription

Click to expand full text
SM12GZ47, SM12JZ47, SM12GZ47A, SM12JZ47A TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE SM12GZ47, SM12JZ47, SM12GZ47A, SM12JZ47A AC POWER CONTROL APPLICATIONS Repetitive Peak off−State Voltage R.M.S On−State Current High Commutating (dv / dt) Isolation Voltage : VIsol = 1500V AC : VDRM = 400V, 600V : IT (RMS) = 12A Unit: mm MAXIMUM RATINGS CHARACTERISTIC Repetitive Peak Off−State Voltage and Repetitive Peak Reverse Voltage SM12GZ47 SM12GZ47A SM12JZ47 SM12JZ47A SYMBOL RATING 400 VDRM 600 IT (RMS) ITSM I t di / dt PGM PG (AV) VFGM IGM Tj Tstg VIsol 2 UNIT V R. M. S.
