TA7805AF

Three-Terminal Positive Voltage Regulator

TA7805AF Features

* Maximum output current: 1 A Output voltage: 3.3 / 4.0 / 5.0 / 7.0 / 8.0 / 9.0 V Output voltage accuracy: VOUT ± 4% (@Tj = 25°C) Protection function: over current protection /thermal shutdown /safe operating area(SOA) Package type: New PW-Mold Weight

TA7805AF Datasheet (303.33 KB)

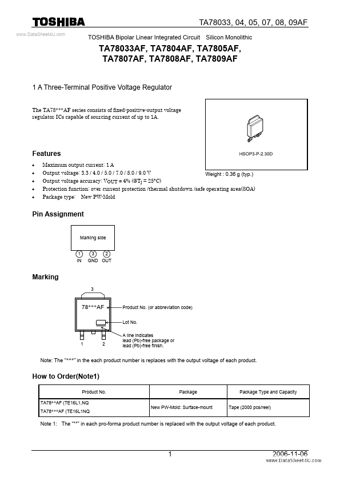

Preview of TA7805AF PDF

Datasheet Details

Part number:

TA7805AF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

303.33 KB

Description:

Three-terminal positive voltage regulator.
TA78033, 04, 05, 07, 08, 09AF www.DataSheet4U.com TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA78033AF, TA7804AF, TA7805AF, TA780.
