TA7805F, TA7810F Three Terminal Positive Voltage Regulator

TA7805F Description

TA7805,057,06,07,08,09,10,12,15,18,20,24F TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7805F,TA78057F,TA7806F,TA7807F,TA7808F,TA7809.

TA7805F Features

* z Internal overcurrent protection. z Internal overheating protection. z Maximum output current of 1 A. z Packaged in New PW-Mold (Surface-mount type). Pin Assignment Marking side 1 3 2 IN G ND OUT (CAS E) Marking 3 HSOP3-P-2.30D Weight HSOP3-P-2.30D: 0.36 g (typ. ) TA78
* F Product No

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA7805F, TA7810F. Please refer to the document for exact specifications by model.

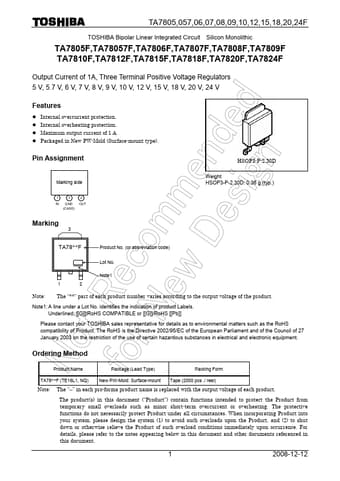

datasheet Preview Page 2 datasheet Preview Page 3
