TC74ACT139FN - Dual 2-to-4 Line Decoder

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

TC74ACT139FN Dual 2-to-4 Line Decoder by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – TC74ACT139FN

Datasheet Details

Part number	TC74ACT139FN
Manufacturer	Toshiba Semiconductor
File Size	249.94 KB
Description	Dual 2-to-4 Line Decoder
Datasheet	TC74ACT139FN Datasheet
Note	This datasheet PDF includes multiple part numbers: TC74ACT139FN, TC74ACT139F. Please refer to the document for exact specifications by model.

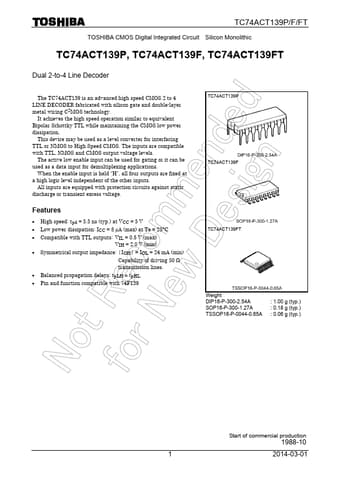

Additional preview pages of the TC74ACT139FN datasheet.

Product details

Features

High speed: tpd = 5.5 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 8 µA (max) at Ta = 25°C.
Compatible with TTL outputs: VIL = 0.8 V (max) VIH = 2.0 V (min).
Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.
Balanced propagation delays: tpLH ∼.
tpHL.
Pin and function compatible with 74F139 Note: xxxFN (JEDEC SOP) is not available in Japan. TC74ACT139P TC74ACT139F TC74ACT1.
