TK12A45D, N-Channel MOSFET

TK12A45D TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ) TK12A45D Switching Regulator Applications * Low drain-source ON.

TK12A45D_ToshibaSemiconductor.pdf

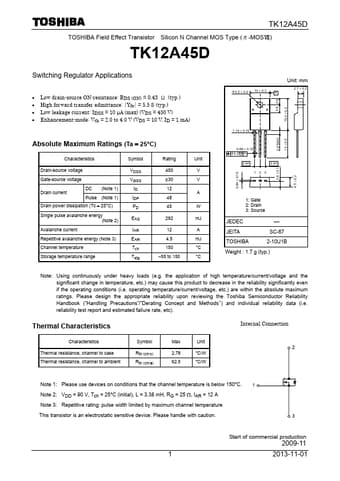

TK12A45D Datasheet Preview — Preview of TK12A45D PDF

Datasheet Details

Part number:

TK12A45D

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

202.88 KB

Description:

N-Channel MOSFET

Applications

* Low drain-source ON-resistance: RDS (ON) = 0.43 Ω (typ. )
* High forward transfer admittance: ⎪Yfs⎪ = 5.5 S (typ. )
* Low leakage current: IDSS = 10 μA (max) (VDS = 450 V)
* Enhancement-mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta =
