TPD1037BS

Low-Side Switch

TPD1037BS Features

* A monolithic power IC with a new structure combining a control block and a vertical power MOSFET (π-MOS) on a single chip. Can directly drive a power load from a CMOS or TTL logic. Low ON-resistance. RDS (ON) = 0.25 Ω (max) (@VIN = 5 V, Tj = 25°C) Package TO-92 (MOD) can be packed in tape.

TPD1037BS General Description

Pin No. Symbol Pin Description Input pin. This pin is connected to a pull-down resistor internally, so that even when input wiring is open-circuited, output can never be turned on inadvertently. Output pin. If an inrush current flows (e.g., from a lamp), the current is clamped at 10 A (typ.) by an o.

TPD1037BS Datasheet (215.63 KB)

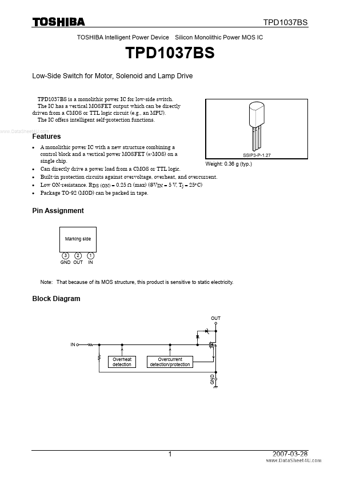

Preview of TPD1037BS PDF

Datasheet Details

Part number:

TPD1037BS

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

215.63 KB

Description:

Low-side switch.
TPD1037BS TOSHIBA Intelligent Power Device Silicon Monolithic Power MOS IC TPD1037BS Low-Side Switch for Motor, Solenoid and Lamp Drive TPD1037BS is .
