2SA1279 Datasheet, Transistor, Toshiba

2SA1279 Features

  • Transistor . Low Collector Saturation Voltage : VC E(sat)=-0.4V(Max.) (at I C=-3A) . High Speed Switching Time : t s tg=1.0/is(Typ. . Complementary to 2SC3239 MAXIMUM RATINGS (Ta=25 c) CHARACTERI

PDF File Details

Part number:

2SA1279

Manufacturer:

Toshiba ↗

File Size:

126.67kb

Download:

📄 Datasheet

Description:

Silicon pnp transistor.

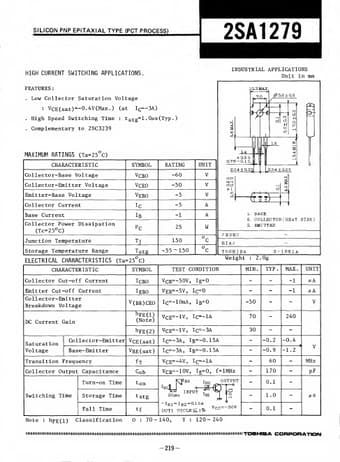

Datasheet Preview: 2SA1279 📥 Download PDF (126.67kb)
Page 2 of 2SA1279 Page 3 of 2SA1279

2SA1279 Application

  • Applications INDUSTRIAL APPLICATIONS Unit in mm FEATURES . Low Collector Saturation Voltage : VC E(sat)=-0.4V(Max.) (at I C=-3A) . High Speed Swi
