2SA1200 SILICON PNP TRIPLE DIFFUSED TRANSISTOR

📥 Download Datasheet  Datasheet Preview Page 1

Description

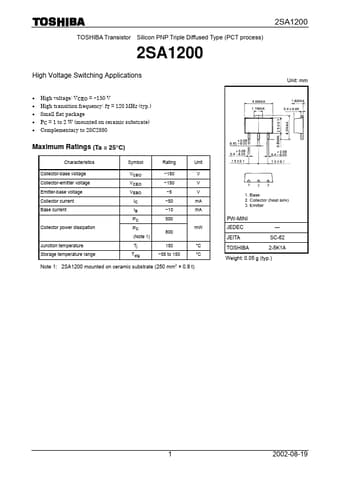

TOSHIBA Transistor Silicon PNP Triple Diffused Type (PCT process) 2SA1200 2SA1200 High Voltage Switching Applications * High voltage: VCEO =

📥 Download Datasheet

Preview of 2SA1200 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* High voltage: VCEO =
* 150 V
* High transition frequency: fT = 120 MHz (typ. )
* Small flat package
* PC = 1 to 2 W (mounted on ceramic substrate)
* Complementary to 2SC2880 Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Colle
