2SA1241 - Silicon PNP Transistor

Product Overview

Toshiba Semiconductor

Part number	2SA1241
Manufacturer	Toshiba Semiconductor
File Size	326.64 KB
Description	Silicon PNP Transistor
Datasheet	2SA1241 Datasheet

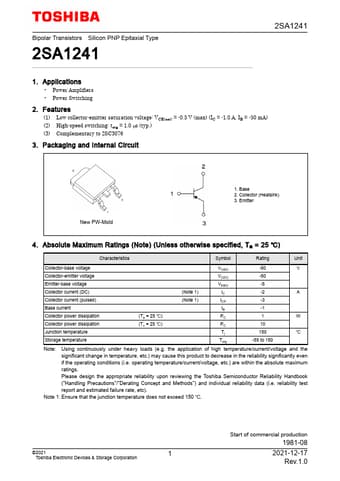

Additional preview pages of the 2SA1241 datasheet.

(1) Low collector-emitter saturation voltage: VCE(sat) = -0.5 V (max) (IC = -1.0 A, IB = -50 mA) (2) High-speed switching: tstg = 1.0 µs (typ. ) (3) Complementary to 2SC3076 3. Packaging and Internal Circuit 1. Base 2. Collector (Heatsink) 3. Emitter New PW-Mold 4. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25.
) Characteristics Symbol Rating Unit Collector-base voltage VCBO -50 V Collector-emitter voltage VCEO -50 Emitter-base voltage VEBO -5 Collecto.
