2SA1246 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • High VEBO.
  • Wide ASO and highly resistant to breakdown. Package Dimensions unit:mm 2003B [2SA1246/2SC3114] 5.0 4.0 4.0 0.45 0.5 0.6 2.0 0.45 0.44 14.0 1 2 3 5.0 ( ) : 2SA1246 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg www. DataSheet. net/.

📥 Download Datasheet

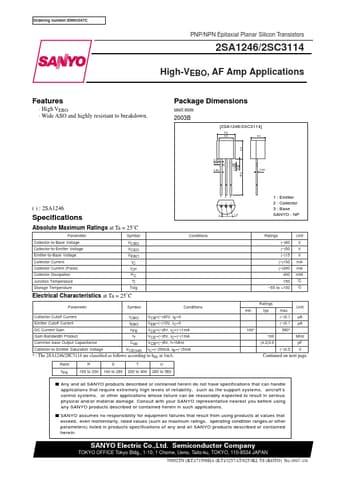

Datasheet preview – 2SA1246

Datasheet Details

Part number 2SA1246
Manufacturer Sanyo Semicon Device
File Size 96.53 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SA1246 Datasheet
