2SA1244 PNP Transistor

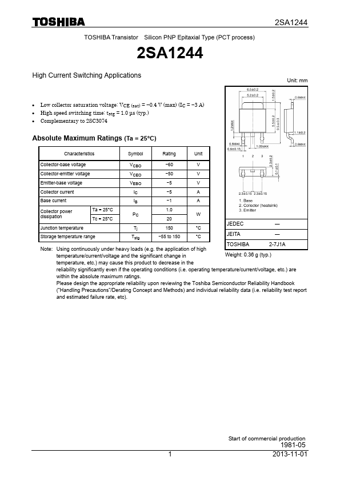

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1244 High Current Switching Applications 2SA1244 Unit: mm Low collector saturation voltage: VCE (sat) = 0.4 V (max) (IC = 3 A) High speed switching time: tstg = 1.0 μs (typ.) Complementary to 2SC3074 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 50 V Emitter-base v.
