Part number:
2SA1327
Manufacturer:
File Size:
82.76 KB
Description:
Silicon pnp transistor.

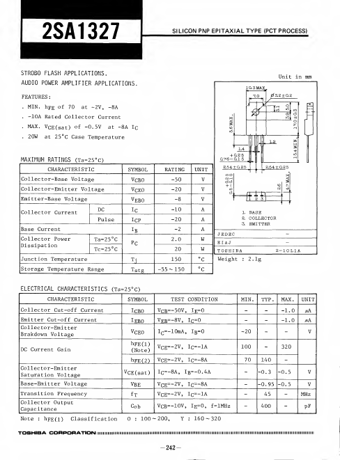

* . MIN. h FE of 70 at -2V, -8A . -10A Rated Collector Current . MAX. VcE(sat) of -0.5V at -8A Iq . 20W at 25°C Case Temperature Unit in mm 10.3MAX„ 03.2 + 0.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Cur
2SA1327
82.76 KB
Silicon pnp transistor.
