2SA1328 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SA1328

Manufacturer:

INCHANGE

File Size:

211.54kb

Download:

📄 Datasheet

Description:

Pnp transistor.

  • Low Collector Saturation Voltage :VCE(sat)= -0.4(V)(Max)@IC= -6A
  • High Switching Speed
  • Complement to Type 2

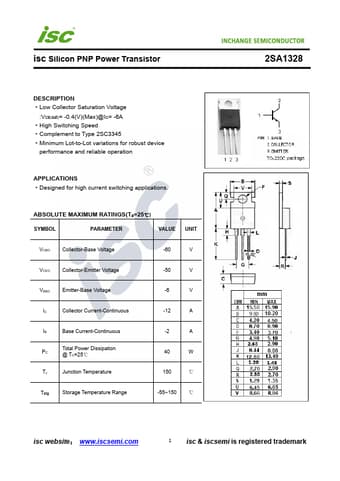

  • Datasheet Preview: 2SA1328 📥 Download PDF (211.54kb)
    Page 2 of 2SA1328 Page 3 of 2SA1328

    2SA1328 Application

    • Applications
    • Designed for high current switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Colle
