2SA1306 Datasheet, transistors equivalent, INCHANGE

PDF File Details

Part number:

2SA1306

Manufacturer:

INCHANGE

File Size:

192.31kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistors.

  • Good Linearity of hFE
  • High Collector-Emitter Breakdown Voltage- V(BR)CEO= -160V(Min)
  • Complement to Type 2S

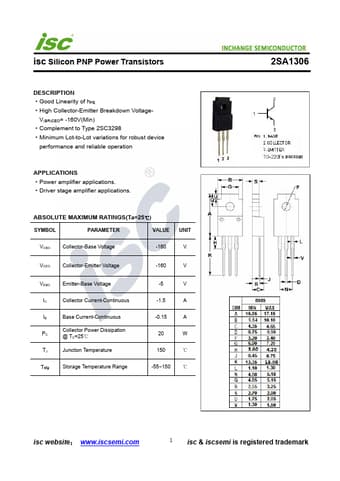

  • Datasheet Preview: 2SA1306 📥 Download PDF (192.31kb)
    Page 2 of 2SA1306 Page 3 of 2SA1306

    2SA1306 Application

    • Applications
    • Power amplifier applications.
    • Driver stage amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMET
