2SA1307 - PNP Transistor

2SA1307 Description

isc Silicon PNP Power Transistor .
Low Collector Saturation Voltage- : VCE(sat)= -0. High Switching Speed. Complement to Type 2SC3299. Minimum Lot-to-L.

2SA1307 Applications

* Designed for high current switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -5 A IB Base Current-Continu

📥 Download Datasheet

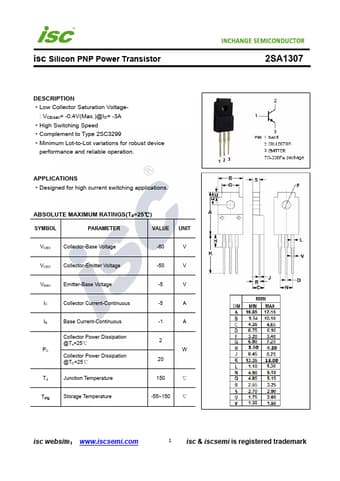

Preview of 2SA1307 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1307
Manufacturer
INCHANGE
File Size
212.05 KB
Datasheet
2SA1307-INCHANGE.pdf
Description
PNP Transistor
