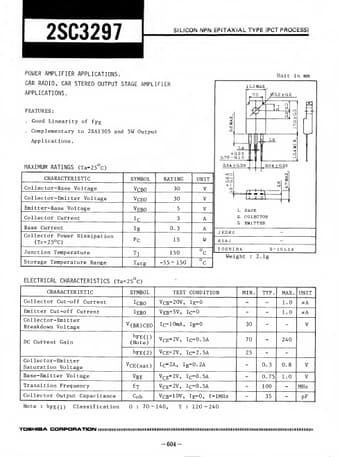

SILICON NPN EPITAXIAL TYPE (PCT PROCESS)
POWER AMPLIFIER APPLICATIONS. CAR RADIO, CAR STEREO OUTPUT STAGE AMPLIFIER APPLICATIONS.
FEATURES . Good Linearity of fpg . Complementary to 2SA1305 and 5W Output
Applications
10.3 MAX
Unit in mm
MAXIMUM RATINGS (Ta=25°C)
CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation
(Tc=25°C) Junction Temperature Storage Temperature Range
SYMBOL VCBO VCEO v EBO
RATING 30 30
IB PC
L stg
0.3 15
150
-55~150
UNIT
1. BASE 2. COLECTOR 3. EMITTER
TOSHIBA
2-10L1A
Weight : 2.
2SC3297 Datasheet
