2SC5855 - Silicon NPN Transistor

2SC5855 Description

2SC5855 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SC5855 HORIZONTAL DEFLECTION OUTPUT FOR SUPER HIGH RESOLUTION DISPLAY, COLOR TV, DI.

2SC5855 Applications

* High Voltage Low Saturation Voltage High Speed : VCBO = 1500 V : VCE (sat) = 3 V (max) : tf(2) = 0.1 µs (typ. ) Unit: mm MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector
* Base Voltage Collector
* Emitter Voltage Emitter
* Base Voltage Collector Current Base Current Collector P

📥 Download Datasheet

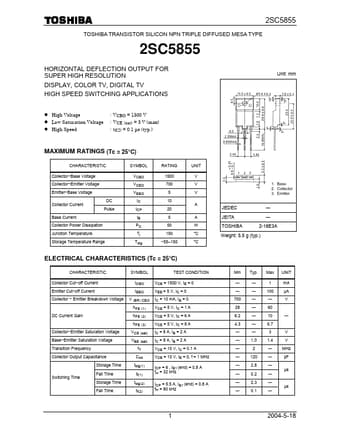

Preview of 2SC5855 PDF
