74HC574D - Octal D-Type Flip-Flop

74HC574D Description

CMOS Digital Integrated Circuits Silicon Monolithic 74HC574D 74HC574D 1.Functional .
Octal D-Type Flip Flop with 3-State Outputs 2.

74HC574D Features

* (1) Wide operating temperature range: Topr = -40 to 125
* (Note 1) (2) High speed: fMAX = 59 MHz (typ. ) at VCC = 6.0 V (3) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25
* (4) Balanced propagation delays: tPLH ≈ tPHL (5) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V Note 1: O

📥 Download Datasheet

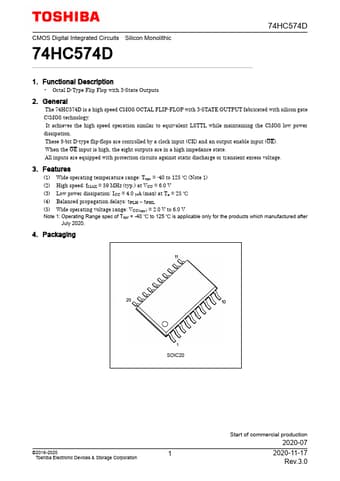

Preview of 74HC574D PDF
