74HC574-Q100

Octal D-type flip-flop

74HC574-Q100 Datasheet (285.61 KB)

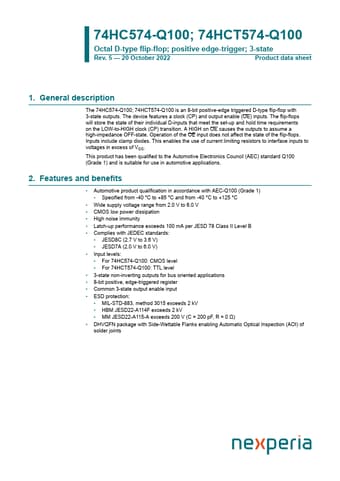

Preview of 74HC574-Q100 PDF Datasheet

Datasheet Details

Part number:

74HC574-Q100

Manufacturer:

nexperia ↗

File Size:

285.61 KB

Description:

Octal d-type flip-flop

74HC574-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performa

74HC574-Q100 General Description

The 74HC574-Q100; 74HCT574-Q100 is an 8-bit positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HI.
