74HC595D Datasheet, Register/latch, Toshiba

74HC595D Features

  • Register/latch (1) High speed: fMAX = 55 MHz (typ.) at VCC = 5 V (2) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25 (3) Balanced propagation delays: tPLH ≈ tPHL (4) Wide operating voltage range

PDF File Details

Part number:

74HC595D

Manufacturer:

Toshiba ↗

File Size:

267.12kb

Download:

📄 Datasheet

Description:

8-bit shift register/latch.

  • 8-Bit Shift Register/Latch (3-state) 2. General The 74HC595D is a high speed 8-BIT SHIFT REGISTER/LATCH fabricated with sil

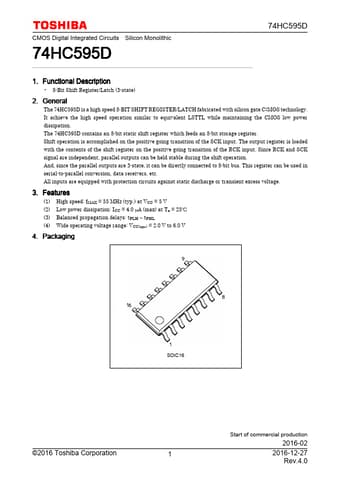

  • Datasheet Preview: 74HC595D 📥 Download PDF (267.12kb)
    Page 2 of 74HC595D Page 3 of 74HC595D
