A2069 Datasheet - Toshiba

A2069 2SA2069

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2069 High-Speed Switching Applications DC-DC Converter Applications 2SA2069 Unit: mm High DC current gain: hFE = 200 to 500 (IC = 0.15 A) Low collector-emitter saturation voltage: VCE (sat) = 0.14 V (max) High-speed switching: tf = 37 ns (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Colle.

A2069 Datasheet (142.63 KB)

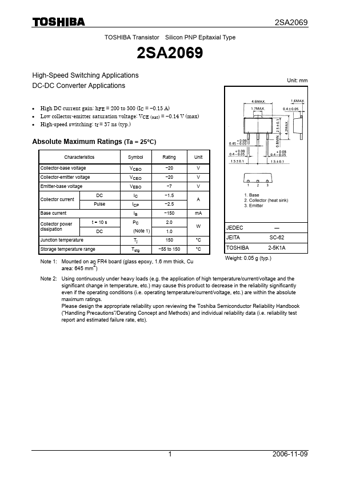

Preview of A2069 PDF

Datasheet Details

Part number:

A2069

Manufacturer:

Toshiba ↗

File Size:

142.63 KB

Description:

2sa2069.
