A2061 - 2SA2061

A2061 Description

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2061 High-Speed Switching Applications DC-DC Converter Applications Strobe Applications 2SA2061 Unit.

A2061 Features

* tion weapons). Product and related software and technology may be controlled under the Japanese Foreign Exchange and Foreign Trade Law and the U. S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with a

A2061 Applications

* DC-DC Converter Applications Strobe Applications 2SA2061 Unit: mm
* High DC current gain: hFE = 200 to 500 (IC =
* 0.5 A)
* Low collector-emitter saturation voltage: VCE (sat) =
* 0.19 V (max)
* High-speed switching: tf = 40 ns (typ. ) Absolute Maximum Ratings

📥 Download Datasheet

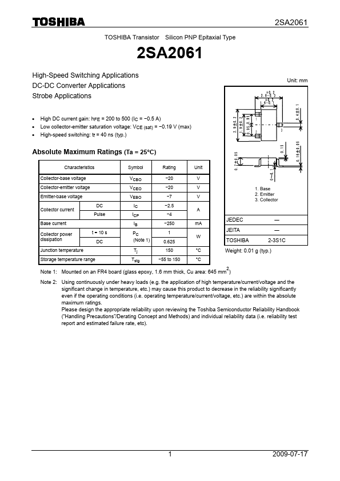

Preview of A2061 PDF
datasheet Preview Page 2 datasheet Preview Page 3
