C3098 Datasheet - Toshiba

C3098 2SC3098

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC3098 2SC3098 UHF~C Band Low Noise Amplifier Applications Unit: mm Low noise figure NF = 2.5dB, |S21e|2 = 14.5dB (f = 500 MHz) NF = 3.0dB, |S21e|2 = 9.0dB (f = 1 GHz) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj.

C3098 Datasheet (164.77 KB)

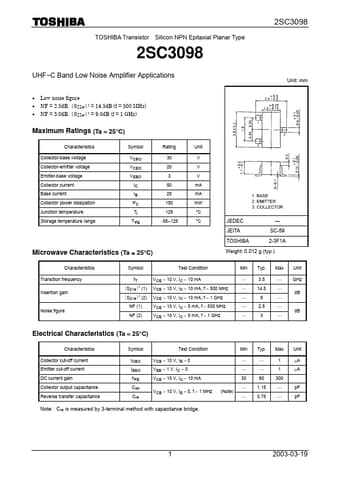

Preview of C3098 PDF
C3098 Datasheet Preview Page 2 C3098 Datasheet Preview Page 3

Datasheet Details

Part number:

C3098

Manufacturer:

Toshiba ↗

File Size:

164.77 KB

Description:

2sc3098.
