DF2S6P2FU Datasheet - Toshiba

DF2S6P2FU ESD Protection Diodes

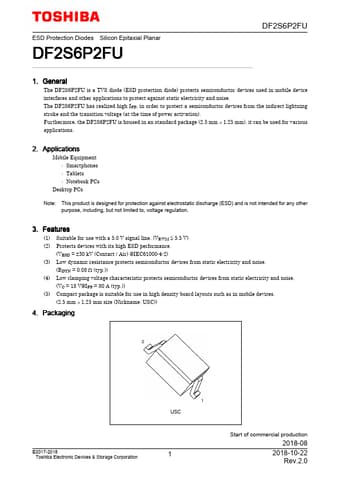

ESD Protection Diodes Silicon Epitaxial Planar DF2S6P2FU DF2S6P2FU 1. General The DF2S6P2FU is a TVS diode (ESD protection diode) protects semiconductor devices used in mobile device interfaces and other applications to protect against static electricity and noise. The DF2S6P2FU has realized high IPP, in order to protect a semiconductor devices from the indirect lightning stroke and the transition voltage (at the time of power activation). Furthermore, the DF2S6P2FU is housed in an standard pa.

DF2S6P2FU Features

* (1) Suitable for use with a 5.0 V signal line. (VRWM ≤ 5.5 V) (2) Protects devices with its high ESD performance. (VESD = ±30 kV (Contact / Air) @IEC61000-4-2) (3) Low dynamic resistance protects semiconductor devices from static electricity and noise. (RDYN = 0.08 Ω (typ.)) (4) Low clamping voltage

DF2S6P2FU Datasheet (353.31 KB)
