MG800J2YS50A Datasheet - Toshiba

MG800J2YS50A N-Channel IGBT

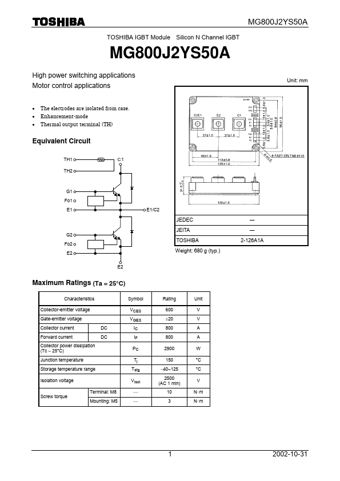

MG800J2YS50A TOSHIBA IGBT Module Silicon N Channel IGBT MG800J2YS50A High power switching applications Motor control applications The electrodes are isolated from case. Enhancement-mode Thermal output terminal (TH) Unit: mm Equivalent Circuit TH1 TH2 Ｃ1 G1 Fo1 E1 E1/C2 JEDEC G2 Fo2 E2 E2 ― ― 2-126A1A JEITA TOSHIBA Weight: 680 g (typ.) Maximum Ratings (Ta = 25°C) Characteristics Collector-emitter voltage Gate-emitter voltage Collector current Forward current Collector pow.

MG800J2YS50A Datasheet (211.07 KB)

Preview of MG800J2YS50A PDF

Datasheet Details

Part number:

MG800J2YS50A

Manufacturer:

Toshiba ↗

File Size:

211.07 KB

Description:

N-channel igbt.
