RN2969, RN2967, Silicon PNP Transistor

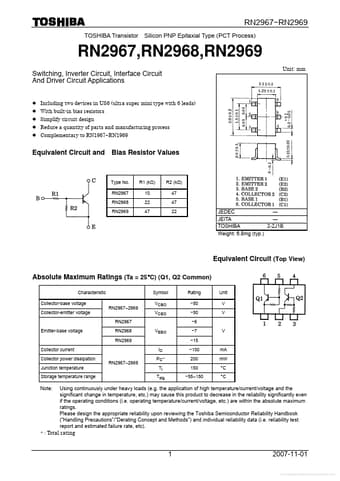

RN2967~RN2969 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2967,RN2968,RN2969 Switching, Inverter Circuit, Interface Circuit And Dri.

RN2967_Toshiba.pdf

RN2969 Datasheet Preview — This datasheet PDF includes multiple part numbers: RN2969, RN2967. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RN2969, RN2967

Manufacturer:

Toshiba ↗

File Size:

292.39 KB

Description:

Silicon PNP Transistor

Note:

This datasheet PDF includes multiple part numbers: RN2969, RN2967.
Please refer to the document for exact specifications by model.

Applications

* z Including two devices in US6 (ultra super mini type with 6 leads) z With built-in bias resistors z Simplify circuit design z Reduce a quantity of parts and manufacturing process z Complementary to RN1967~RN1969 Unit: mm Equivalent Circuit and Bias Resistor Values Type No. RN2967 RN2968 RN2969 R
