RN2002 Datasheet - Toshiba Semiconductor

RN2002 Silicon NPN Epitaxial Type Transistor

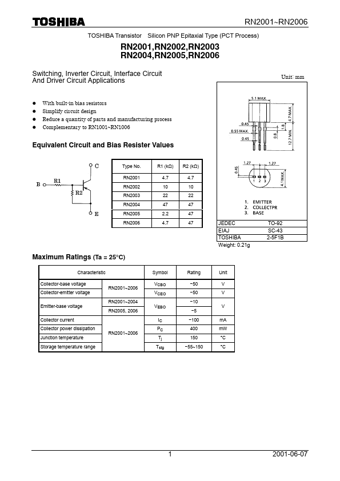

RN2001~RN2006 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) RN2001,RN2002,RN2003 RN2004,RN2005,RN2006 Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications l l l l With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1001~RN1006 Unit: mm Equivalent Circuit and Bias Resister Values Type No. RN2001 RN2002 RN2003 RN2004 RN2005 RN2006 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 47 4.

RN2002_ToshibaSemiconductor.pdf

Preview of RN2002 PDF
RN2002 Datasheet Preview Page 2 RN2002 Datasheet Preview Page 3

Datasheet Details

Part number:

RN2002

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

254.51 KB

Description:

Silicon npn epitaxial type transistor.
